EGP20D
Manufacturer:
On Semiconductor
Mfr.Part #:
EGP20D
Datasheet:
Description:

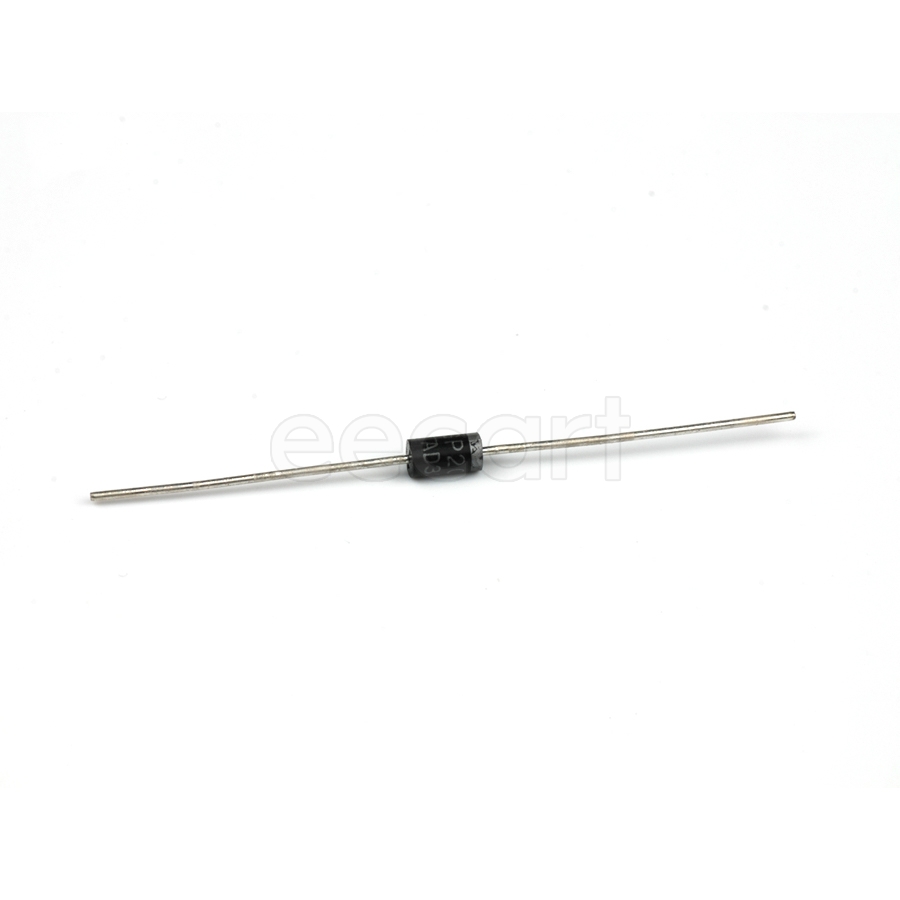

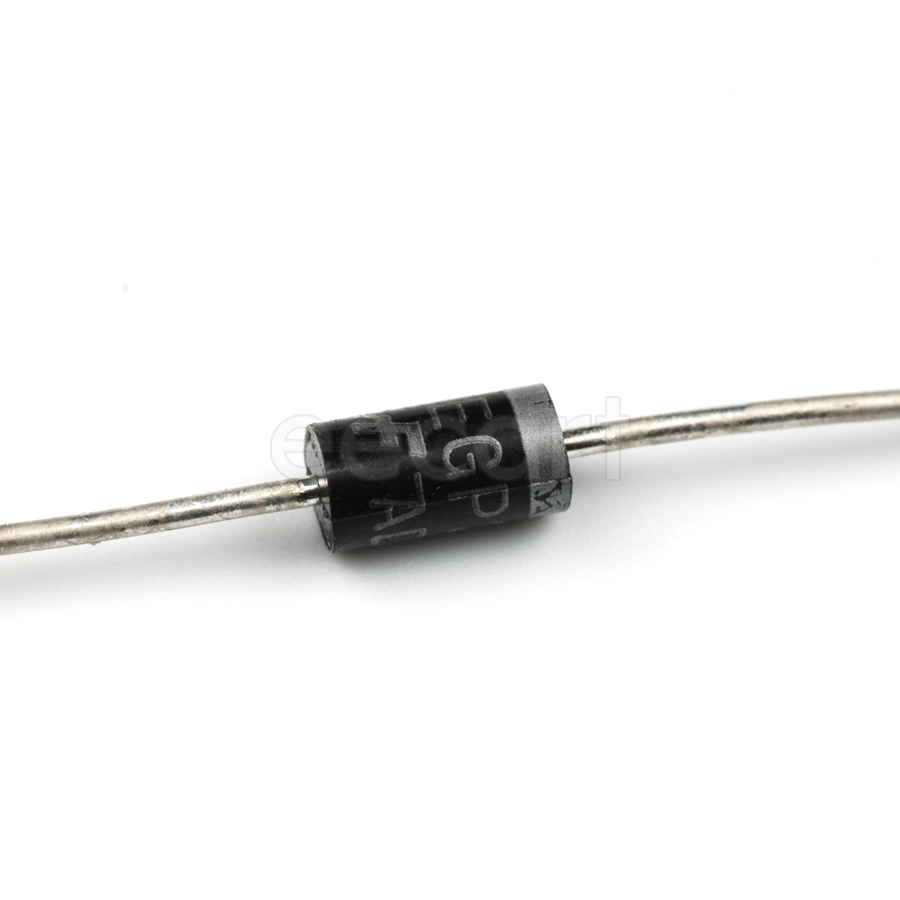

Rectifier Diodes DO-15 Through Hole Standard Single Forward Current:2 A Forward Voltage:950 mV Reverse Voltage:200 V
| Parameter | Value |
|---|---|
| Capacitance | 70 pF |
| Voltage Rating (DC) | 200 V |
| Diameter | 3.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 7.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Weight | 0.3 g |
| Current Rating | 2 A |
| Output Current | 2 A |
| Forward Current | 2 A |
| Forward Voltage | 950 mV |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Power Dissipation | 3.15 W |
| Reverse Recovery Time | 50 ns |
| Average Rectified Current | 2 A |
| Max Repetitive Reverse Voltage (Vrrm) | 200 V |
| Element Configuration | Single |
| Max Surge Current | 75 A |
| Forward Surge Current (Ifsm) | 75 A |
| Reverse Voltage | 200 V |
| Peak Non-Repetitive Surge Current | 75 A |
| Reverse Current | 5 µA |
| Recovery Time | 50 ns |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Type | Standard |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 4209
Distributors
pcbx
pcbxUnit Price$0.61299
Ext.Price$0.61299
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61299 | $0.61299 |
| 10 | $0.41037 | $4.10370 |
| 25 | $0.37895 | $9.47375 |
| 50 | $0.34994 | $17.49700 |
| 100 | $0.32316 | $32.31600 |
| 300 | $0.28500 | $85.50000 |
| 500 | $0.25135 | $125.67500 |
| 1000 | $0.22827 | $228.27000 |
| 3000 | $0.19756 | $592.68000 |
| 5000 | $0.17099 | $854.95000 |
